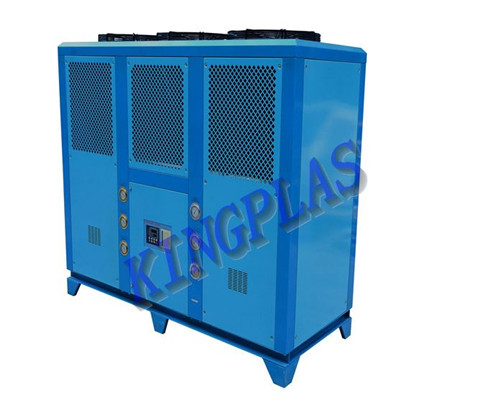

Industrial chiller is using advanced production technology, superior quality, compact structure, beautiful appearance widely used in plastic,electroplating,electronic manufacturing,pharmaceutical,chemical,food packaging, plastic film production,laser ultrasonic cooling,printing industry, it can accurately control the modern industrial mechanized production of the required temperature,Thus greatly improving the production efficiency and product quality.
Unit features:
1.The compressor use international brand low noise power and durable type;
2.The condenser with aluminum fin, heat dissipation effect;
3.All stainless steel water tank evaporator, built-in automatic replenishment device;
4.Selection of imported pumps, stainless steel pump body for customers to choose, to prevent secondary pollution;
5.The use of microcomputer digital temperature controller, integrated operation, simple and practical, high control accuracy;
6.The use of box structure, nice, easy to move;
7.The unit configuration is lack of reverse phase protection motor overload protection high and low voltage protection, low temperature protection and other safety protection devices, the system more secure and stable.
Model |
15A |
20A |
25A |
30A |
40A |
50A |
|
Standard cooling capacity |
kcal/h 50HZ/60HZ |
35883 |
47331 |
52098 |
71792 |
94198 |
118792 |
KW 50HZ/61HZ |
41.6 |
54.9 |
60.4 |
83.2 |
109.2 |
137.8 |
|
Total Power(KW) |
14 |
18.5 |
22 |
30.8 |
37.6 |
48 |
|
Compressor(KW) |
11.25 |
15 |
18.75 |
22.5 |
30 |
37.5 |
|
Refrigerant |
R22(R134a/407c) |
||||||
Condenser Cooling air volume (m3h) |
15000 |
20000 |
25000 |
30000 |
40000 |
50000 |
|
Evaporator |
Chilled water (m3 / h) |
7.6 |
9.8 |
11 |
15 |
20 |
25 |
Water tank capacity (L) |
300 |
400 |
400 |
540 |
630 |
720 |
|
Water inlet and outlet pipe diameter |
2" |
2" |
2-1/2" |
2-1/2" |
3" |
3" |
|
Water pump (KW) |
1.5 |
2.25 |
2.25 |
3.75 |
3.75 |
5.5 |
|
Dimension |
L(MM) |
2080 |
2110 |
2110 |
2300 |
2430 |
2430 |
W(MM) |
780 |
850 |
850 |
930 |
1185 |
1185 |
|
H(MM) |
1650 |
1600 |
1700 |
1650 |
1710 |
1710 |
|
Weight (kg) |
750 |
850 |
950 |
1080 |
1360 |
1550 |
