Stretch film machine/Cling Film Machine
Name: Julie Lee
Tel: +86-750-55235626
Fax: +86-750-55235627
Mobile: +86-13926531711
E-mail: kingplas@hotmail.com
Add: Taishan Industrial Park,Jiangmen City,Guangdong Province
Skype: kingplas@hotmail.com
WeChat: 13926531711
whatsapp: +86-13926531711
QQ:
365394497

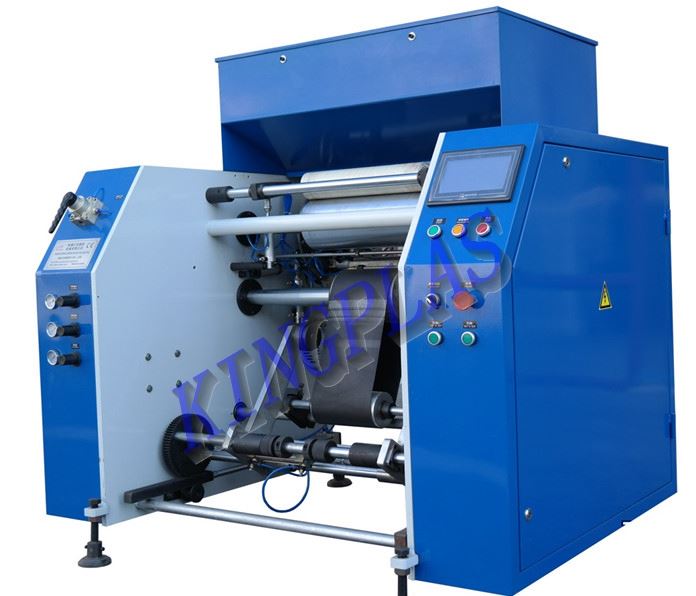

Fully automatic cling film rewinder is mainly used to rewind the PE/PVC JUMBO roll into small roll.It is with 5-shafts which can improve the running efficiency and reduce the cost.
1.5-Shafts continuous rewinding,improving the work efficiency
2.PLC+HMI+Inverter control,which is convenient and fast.
3.Machine will alarm and stop if there is no paper core in the hopper and the shaft,which is very safe.
Main Specification
|
Model |
300 |
|
Width of mother roll(mm) |
300mm |
|
Power of motor(kw) |
2.2 |
|
Line speed(m/min) |
0-500m/min |
|
Finished roll length |
8m-120m |
|
Diameter of mother roll(max)(mm) |
500 |
|
Core specification of parent roll |
3 |
|
Width of baby roll (mm) |
300 |
|
Diameter of sub-roll (max)(mm) |
100 |
|
Core specification of sub-roll |
1”,1.5” |
|
Overall dimensions(L×W×H)(m) |
1.4×1.2×1.2 |
|
