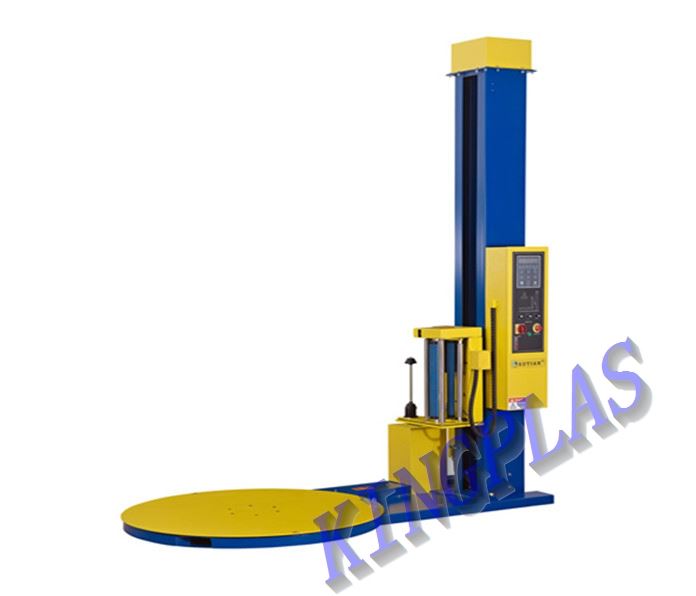

PCB control system with more stable operation ,Heavy duty design with rigid machine body Soft start and soft stop ,safety device.
After every wrapping working,turntable goes back to home position.Photocell detects pallet height,
You can set delay time to get more overhead wrapping Faults display panel,it makes you an easier job for maintenance
Front and rear forklift access points to move machine easily.
SPECIFICATION
|
Model No |
XT-4503-2 |
XT-4503A |
|
Turntable diameter |
1500mm |
1500mm |
|
Pallet height |
700-2100mm |
700-2100mm |
|
Pallet weight |
2000KG |
2000KG |
|
Turntable height |
80mm |
80mm |
|
Power supply |
110V/220V 50HZ/60HZ 1PHASE |
110V/220V 50HZ/60HZ 1PHASE |
|
Control system |
PCB |
PCL |
|
Film carriage |
Pre-stretch 300% |
Pre-stretch 300% |
|
Turntable speed |
0-12R/M |
0-12R/M |
|
Net weight |
487kg |
508kg |
