KINGPLAS MACHINERY CO.,LTD


 1- T-die adopts imported top special mould steel, by the high-precision process and treatment to ensure the long-term use of non-die deformation, and material extrusion more smooth and stable.

 2- The screw adopts special mixing function and high plasticizing design which combine import static mixer to ensure plasticization is great, color is uniform and increase extrusion capacity greatly.

 3- The temperature is controlled by automatic temperature controller, which can accurately control the plasticizing process. All of the temperature controller match with solid relay.
 4- The Extrusion speed, Drawing speed, Winding speed are controlled by Inverter.
 5- Automatic feeding and on line recycling material.The machine equipped with digital meter counter to control the length of the film automaticly.
 6- Full automatically winder exchanging system and controlled by PLC program

Model

55/80/55-1250

65/90/65*1850

Layers

ABC/ABCBA

ABC/ABCBA

Screw diameter

55mm/80mm/55mm

65mm/90mm/65mm

Screw L/D ratio

30:1

30:1

Screw speed

20-150rpm

20-150rpm

Max output

60-150kg/hr

100-250kg/hr

Finished Film Width

1000mm/2*500mm/2*450mm

1500mm/3*500mm/3*450mm

Thickness

0.01-0.05mm

0.01-0.05mm

Total power

110kw

150kw

Consumption power

30-40kw/h

40kw-50kw/h

Dimension(mm)

7500*3000*3500

10000*3500*3500

Weight

9000kg

12000kg

Product Show

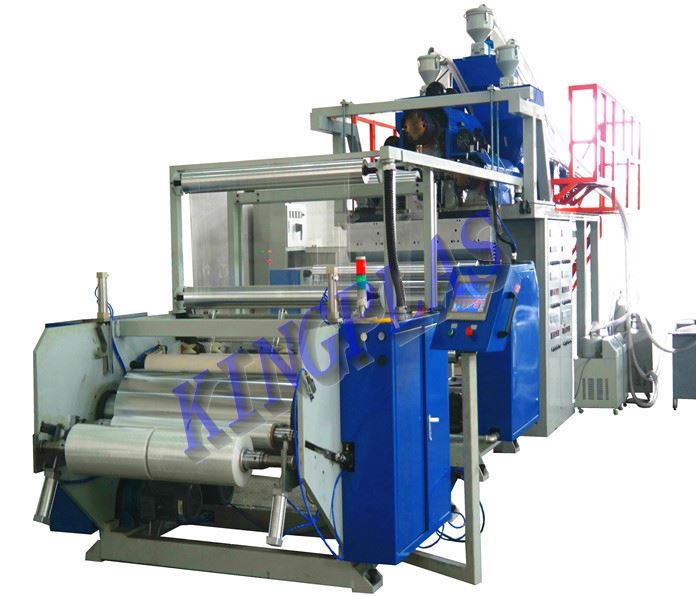

3 Layer Stretch Film Machine

  3 Layer Stretch Film Machine
